Brushless motor 10 pole ring neodymium magnet 45.9x41.4x13mm

This product is a multi-pole NdFeb magnetic ring with 10 internal magnetization poles and 5 pairs of NS poles distributed on the inner surface of the ring magnet. The specific material is bonded NdFeb with an outer diameter of 45.9mm, an inner diameter of 41.4mm and a height of 13mm. We can provide samples for you.

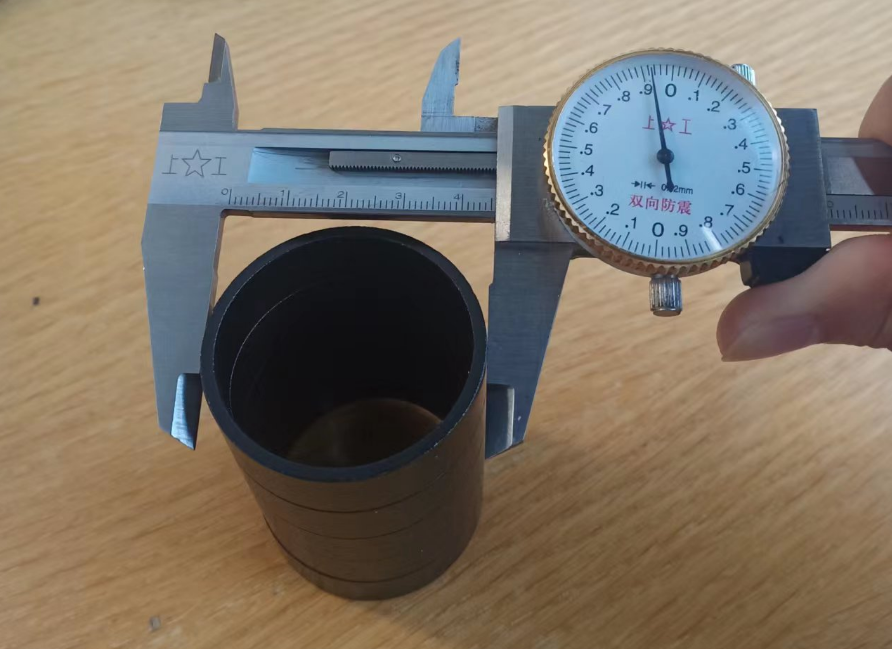

10 poles neodymium Ring Magnet 45.9x41.4x13mm Physical picture

Brushless motor ring magnet refers to the magnet used in the rotor of brushless motor, which can be different designed and selected according to the construction and performance requirements of the motor.

Usually, there are several or dozens of strong and good magnetic permanent magnet magnets on the rotor of a brushless motor. These magnets will generate a magnetic field when the motor is running and interact with the coil in the stator to realize the rotation of the rotor.

Ring magnet is a common brushless motor magnet shape, which can effectively reduce the rotor inertia of the motor and enhance the response and dynamic characteristics of the motor. At the same time, the ring magnet can better realize the magnetic field distribution control and magnetic circuit design, so as to improve the efficiency and performance of the motor.

The types and specifications of ring magnets are also very diverse, which can be selected and applied according to the specific motor construction and working requirements. It should be noted that in the operation of the motor, the ring magnet will be affected by greater thermal stress and vibration, so it is necessary to pay attention to the selection of materials, processing technology and installation details in the design and production process.

Related brushless motor magnet knowledge introduction;

Temperature requirements for brushless motor magnets

Dongguan Courage Magnetoelectric Technology Co., Ltd. is a Chinese magnet manufacturer specializing in the production of strong neodymium magnets, ceramic ferrite magnets, motor multipole magnets. We have cooperated with many customers for many years, mainly for the following reasons:

1, We are good at processing high performance, high precision, high difficulty magnet, especially in the field of DC motor magnet, have strong professional knowledge, experience.

2, We have a professional production, sales, design team, based on the industry for more than 14 years.

3, We have advanced magnet production and testing equipment, according to customer requirements to design, production of special requirements of magnet products,

4. The company's products have passed SGS, ROHS, REACH certification and a complete ISO9001 quality management system, specializing in providing high-quality permanent magnet products to customers in various countries.

5. Experience in serving Western, Asian and North American companies, we also have close ties with other regions, fedex or DHL can deliver,

6, Even if our customers do not know much about magnets, we will help and provide accurate product solutions.
